Alüm™

Specifications

  • Material: 1100 Aluminium or 6063 Extruded Aluminium
  • Finishing: Powder Coating, PVDF, Veneer Print
  • Product: Hook-On, Clip-In, Lay-In, Lay-On, Mesh, C Linear, S Linear, H Linear, U Linear, Baffle 501 or 502, Cell, Tube, Screen 701, 702 or 703, Perforated
  • Perforation Diameter: 1mm, 1.8mm, 2.3mm, 3mm, 5mm
  • Antibacterial Certification: JIS Z 28001 Pass
  • Fire-Rated Test: EN 13501-1 = Class B s1, d0
  • Acoustic Test: ISO 354 = NRC 0.75

Download Specification Sheets ZIP

Hook-On

Open space suspension system

Alüm™ Hook-On ceiling system features a sealed design with customisable sizes. The panels are securely hooked onto a Z-shape carrier, effectively concealing the suspension parts within the ceiling. A security clip is included to ensure windproof functionality.

Download Specification Sheet PDF

Clip-In

Concealed suspension system

Alüm™ Clip-In Ceiling System uses a concealed suspension system which showcases a stable structure with a smooth surface. Each panel dismounts easily and makes for easy routine maintenance and installation. There are multiple perforation patterns and designs which are offered to achieve various visual effects.

Download Specification Sheet PDF

Lay-In

Exposed suspension system

Alüm™ Lay-In ceiling system utilizes an exposed suspension system on a T-grid pattern. The ceiling panels easily lay into the T-grid carriers, making installation and unmounting effortless. Multiple perforation patterns are available, allowing for a variety of visual effects.

Download Specification Sheet PDF

Lay-On

Exposed suspension system

Alüm™ Lay-On ceiling system is using an exposed suspension system on a T-grid pattern. The ceiling panels lay on the back of the T-grid carriers, which make each panel easy to install and unmount. There are multiple perforation patterns and designs which are offered to achieve various practical and visual effects. An easy solution to creating beautiful ceilings.

Download Specification Sheet PDF

Mesh

Open space suspension system

The Alüm™ Mesh ceiling panels effortlessly fit into the T-grid carriers, simplifying the installation and removal process. These mesh panels are laid on visible T-shaped main and cross runners and are available in square and rectangle variations. Aluminium mesh ceilings are crafted using interwoven aluminium wires or perforated aluminium panels, offering a distinctive and visually appealing design element to any space.

Download Specification Sheet PDF

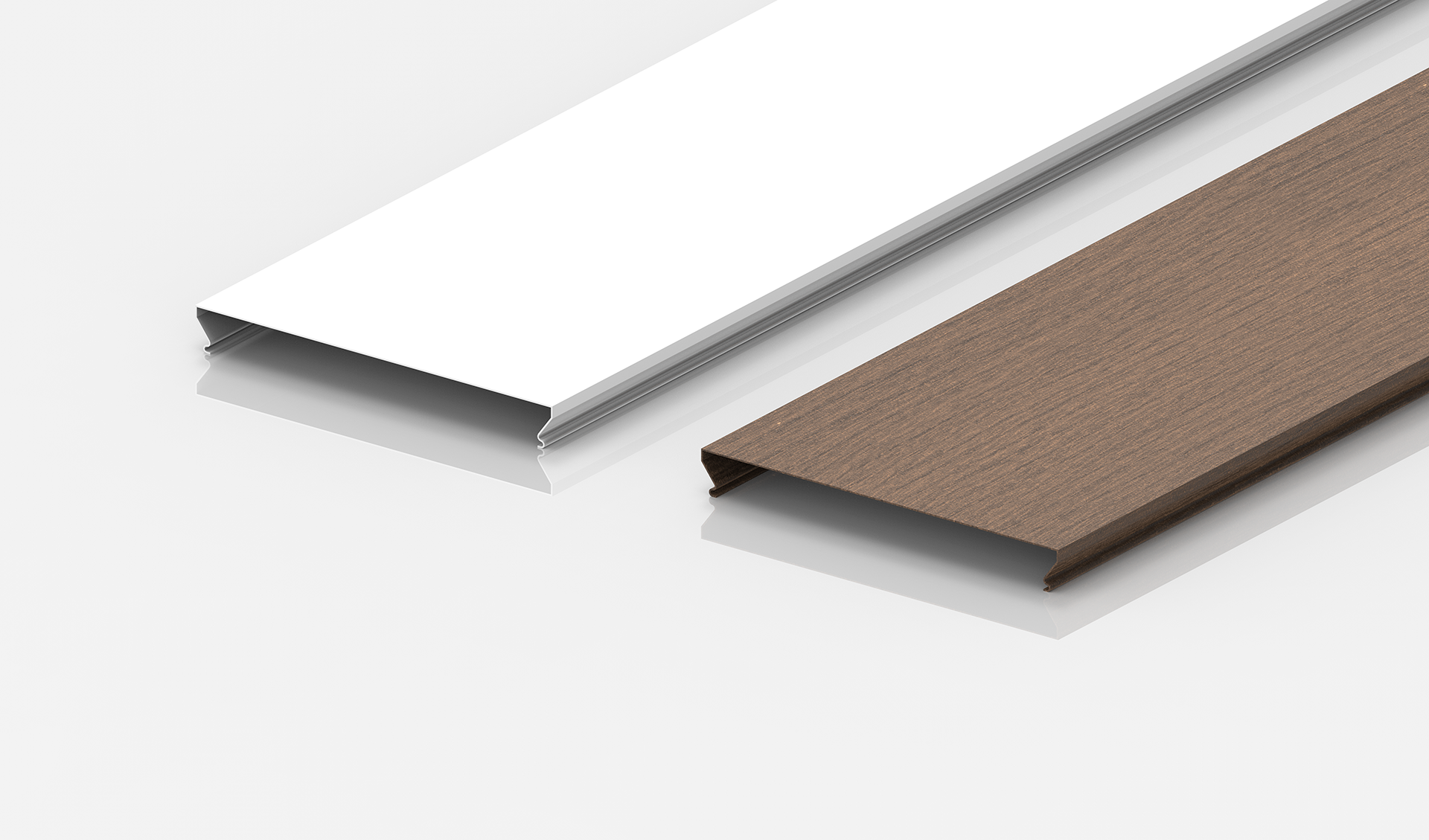

C Linear

Open space suspension system

Alüm™ C Linear ceiling system features a conceal suspension system with a C carrier. It offers customisable lengths, with a maximum length of 6000m. This linear aluminium ceiling system provides several advantages, including a modern design, versatile configurations, easy installation and maintenance, and customisation options.

Download Specification Sheet PDF

S Linear

Concealed suspension system

Alüm™ S Linear ceiling system features a concealed suspension system with an S carrier. It offers customizable lengths, with a maximum length of 6000m. The panels are securely suspended by a special S carrier that can be tightly locked, ensuring windproof functionality.

Download Specification Sheet PDF

H Linear

Concealed suspension system

Alüm™ H Linear ceiling system utilises a conceal suspension, suspended by Special H carriers. The system allows for customizable lengths, with a maximum of 6000mm. It offers a contemporary appearance with clean lines and can be installed in various patterns, making it a suitable choice for a wide range of commercial, institutional, and residential applications.

Download Specification Sheet PDF

U Linear

Open space or conceal suspension system

Alüm™ U Linear ceiling system offers both conceal suspension and open suspension options for installation. It comes in two types: Open type (84mm panel) and Close type (84 + 16mm). It offers clean lines and can be installed in different patterns.

Download Specification Sheet PDF

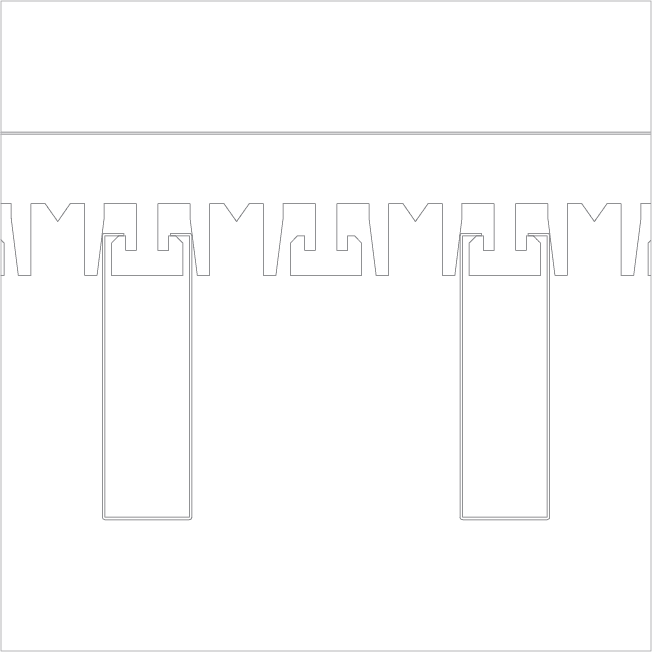

Baffle 501

Open space suspension system

Alüm™ Baffle 501 Ceiling System offers customizable dimensions and an open space suspension system. The length, width, height and spacing of the panels are customisable. With their aesthetic appeal, and versatility, these systems provide architects and designers with the freedom to create visually stunning and acoustically comfortable environments.

Download Specification Sheet PDF

Baffle 502

Open space suspension system

Alüm™ Baffle 502 Ceiling System offers customizable dimensions and an open space suspension system. The length, width, height and spacing of the panels are customisable. With their aesthetic appeal, and versatility, these systems provide architects and designers with the freedom to create visually stunning and acoustically comfortable environments.

Download Specification Sheet PDF

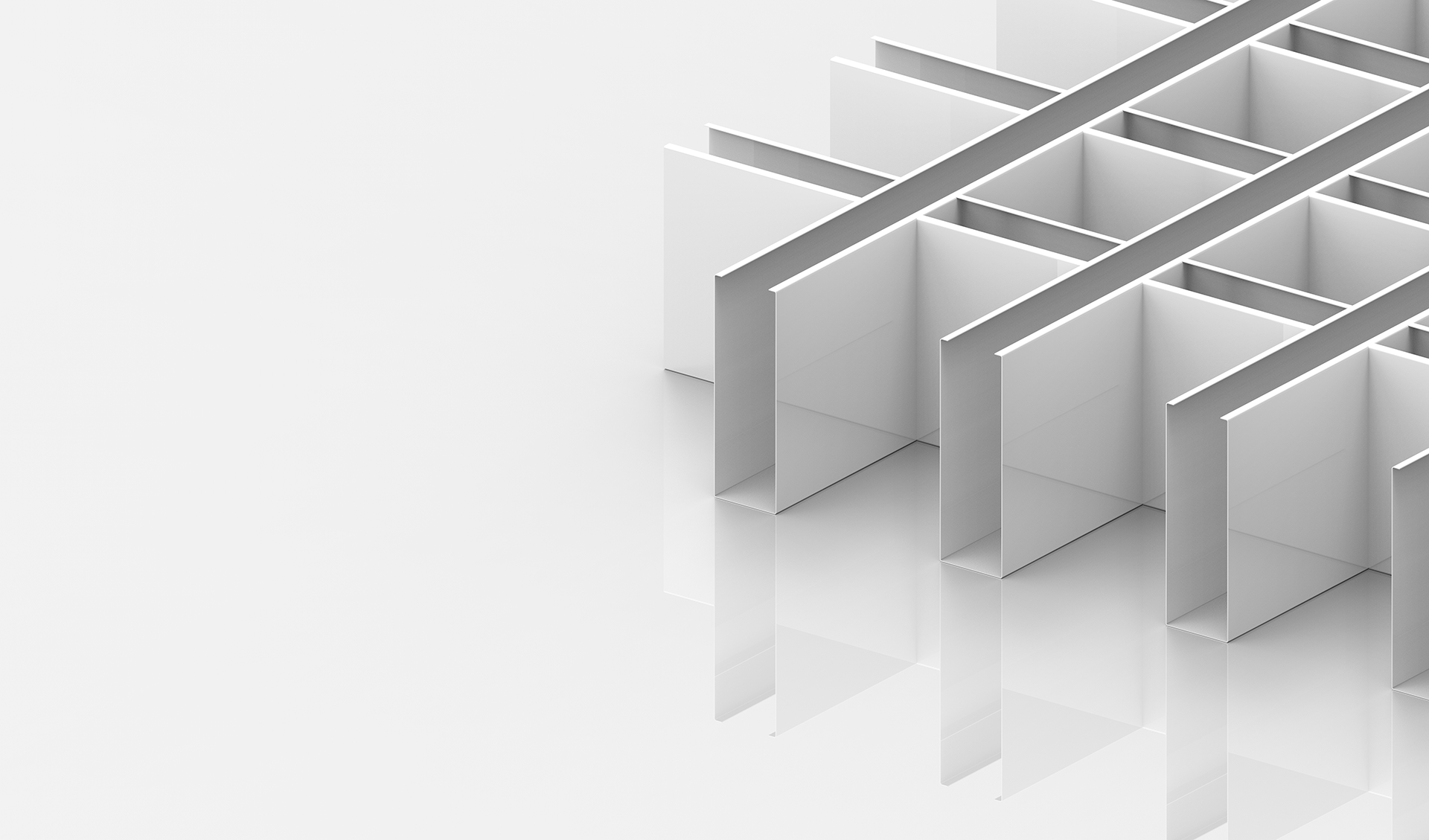

Open Cell

Open space suspension system

Alüm™ Open Cell Ceiling utilises an open plan suspension system. It features a grid-like structure with open cells or voids. The aluminium panels are perforated or designed with cutouts to create visually appealing patterns while allowing airflow and light transmission. The open cells can be arranged in different configurations, offering designers a wide range of design possibilities.

Download Specification Sheet PDF

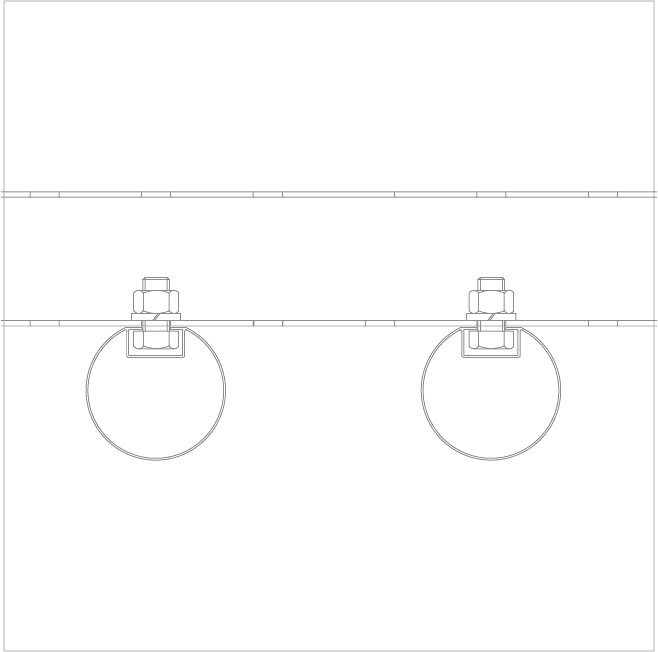

Tube

Open space suspension system

Alüm™ Tube is an open space suspension system for ceilings. It features cylindrical aluminium tubes suspended from the ceiling, creating a continuous linear effect. The tubes can be installed horizontally, vertically, or diagonally, offering versatile design configurations and patterns. The lightweight and robust nature of the aluminium tubes makes installation and maintenance easy.

Download Specification Sheet PDF

Screen 701

Open space suspension system

Alüm™ Screen ceiling system utilises an open space suspension system. The screens are fully customisable in terms of size and spacing. These screens feature strategically placed spaces that allow for efficient airflow, ventilation, and easy access during installation, maintenance, and servicing of equipment located above the ceiling.

Download Specification Sheet PDF

Screen 702

Open space suspension system

Alüm™ Screen ceiling system utilises an open space suspension system. The screens are fully customisable in terms of size and spacing. These screens feature strategically placed spaces that allow for efficient airflow, ventilation, and easy access during installation, maintenance, and servicing of equipment located above the ceiling.

Download Specification Sheet PDF

Screen 703

Open space suspension system

Alüm™ Screen ceiling system utilises an open space suspension system. The screens are fully customisable in terms of size and spacing. These screens feature strategically placed spaces that allow for efficient airflow, ventilation, and easy access during installation, maintenance, and servicing of equipment located above the ceiling.

Download Specification Sheet PDF

Perforated

Open space suspension system

Alüm™ Perforated can be cladded to contoured surfaces, making it customisable to any type of surface you might have. Whether it’s for a commercial or residential project, Alüm™ Perforated create a modern and timeless look while offering longlasting performance and design flexibility

Download Specification Sheet PDF
