C Linear

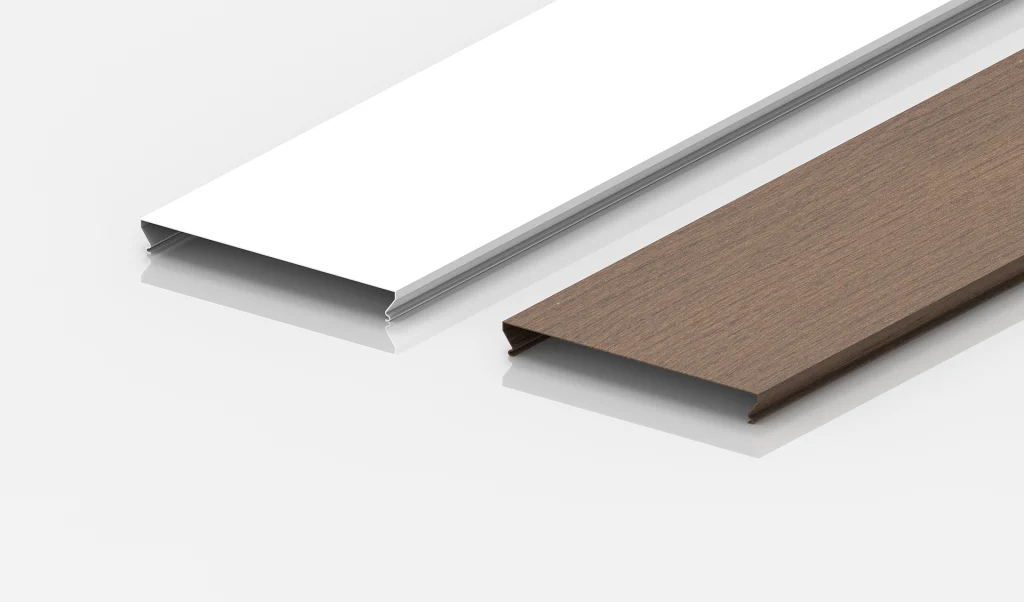

The Alüm™ C Linear ceiling system incorporates a concealed suspension system using a C carrier for seamless and modern designs. These aluminium panels are crafted from durable 1100 aluminium alloy and are available in widths of 50mm to 300mm and thicknesses between 0.35mm and 0.70mm. With finishes like powder coating, PVDF paint, and veneer print, this system offers versatile configurations and easy installation. Certified for antibacterial performance (JIS Z 28001) and fire safety (EN 13501-1 Class B s1, d0), Alüm™ C Linear ensures functionality and safety. The system’s adaptability makes it ideal for contemporary spaces requiring customization and acoustic performance.

Specifications

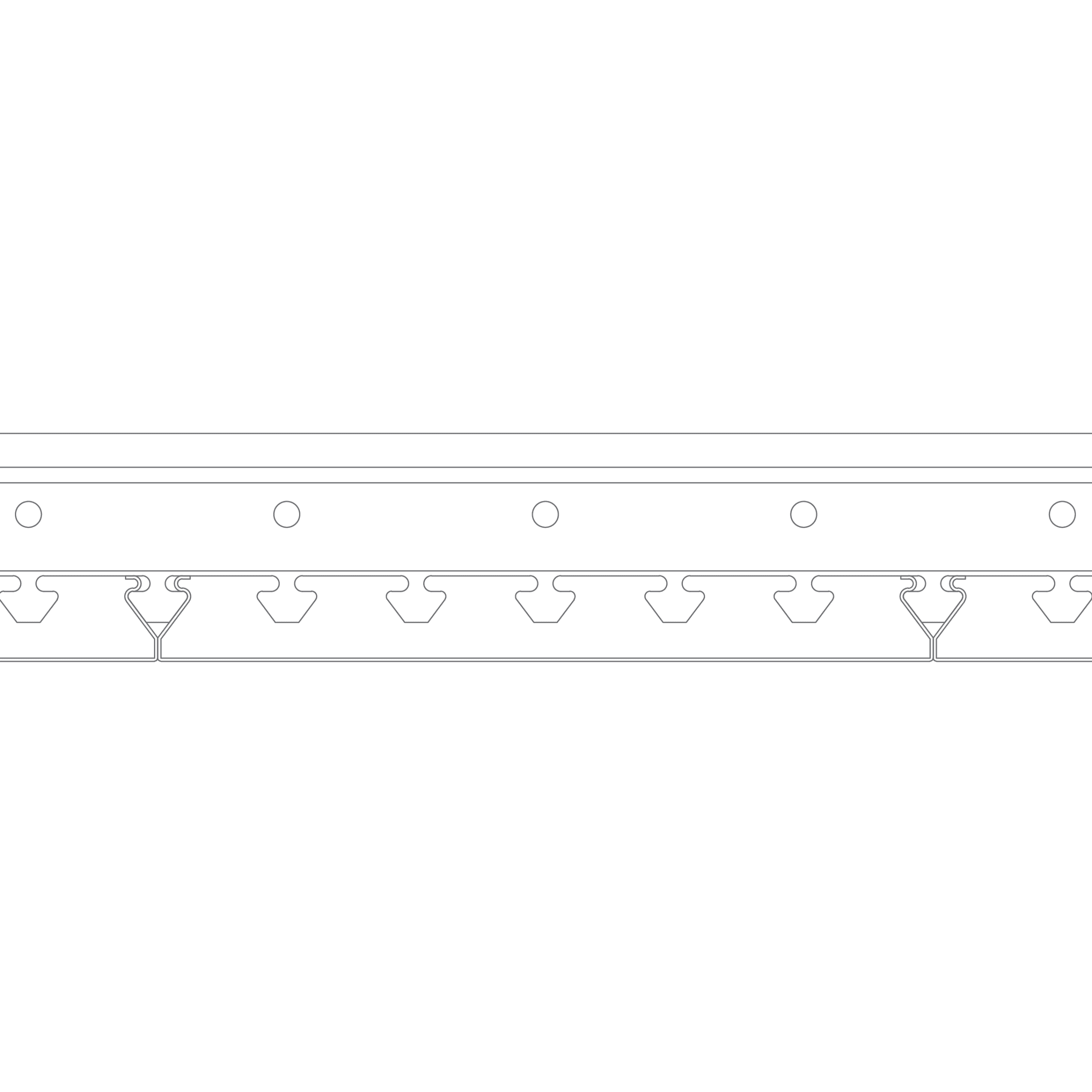

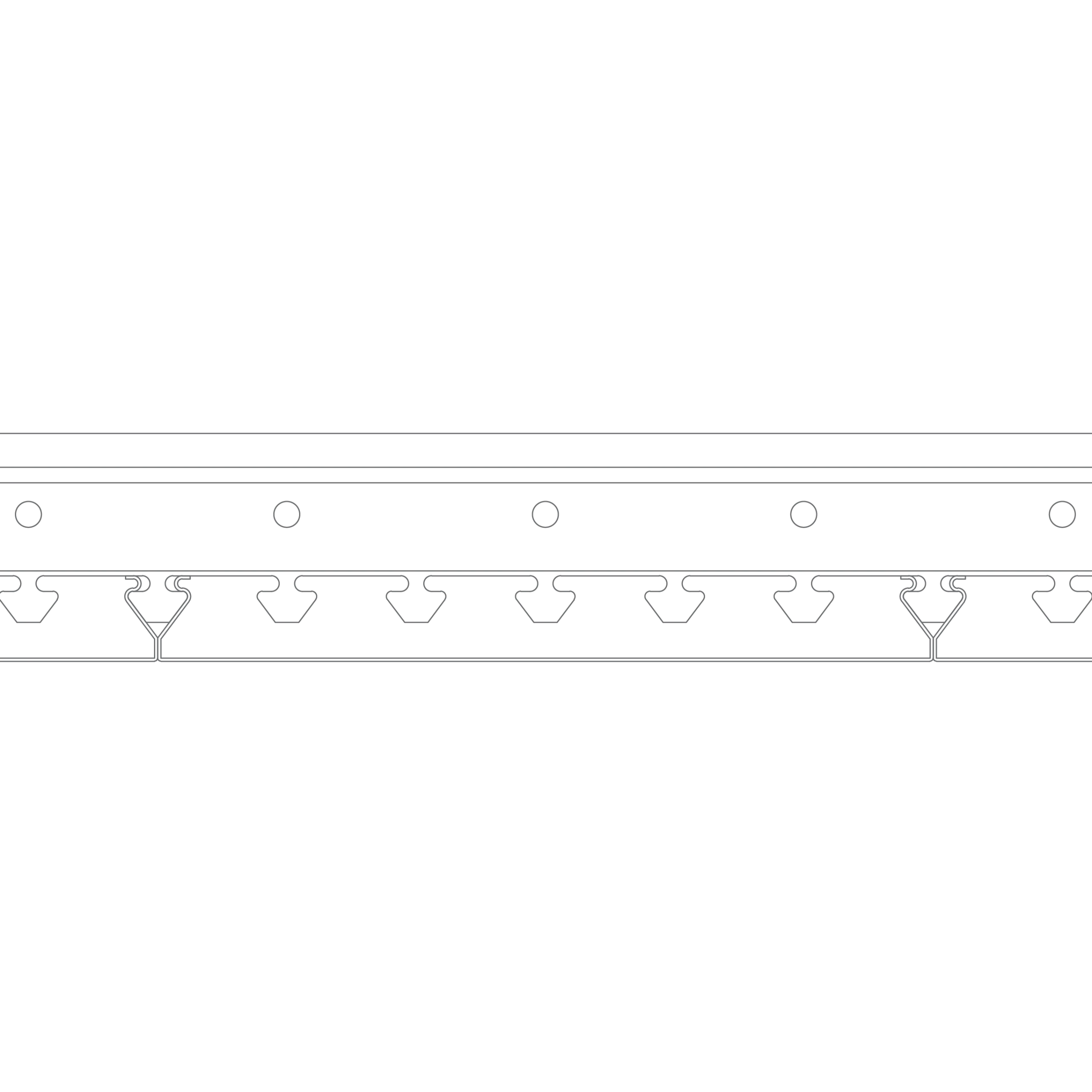

Technical Drawing

Panels are suspended using a concealed C-carrier system that ensures smooth alignment and secure installation. The design facilitates quick installation, offering excellent acoustic properties, and adaptability for a range of architectural projects.

Sunlight casts geometric shadows on a modern staircase with textured steps and smooth railings, creating a minimalist and abstract pattern with soft yellow lighting on the wall.

Sound Absorption Coefficient

Alüm™ is tested to ISO 354 Standards, which is the measurement of sound absorption in a reverberation room. The difference in the reverberation times is a measure of the amount of absorption in the room.

Close-up of green leaves and a small red flower next to two black, metal objects—one with a diamond mesh pattern and one with small circular holes—on a white surface.

Eco-friendly

Gray circular logo with three leaves in the center, surrounded by the text U.S. Green Building Council. A banner across the bottom reads LEED Certified, and USGBC is at the base.

We prioritize sustainability and eco-friendliness in our design and manufacturing processes. Made from eco-friendly recyclable materials, these products reduce environmental impact by minimizing waste and promoting long-lasting performance.

Projects

Our projects encompass a broad spectrum, spanning from new building constructions to renovations. These projects involve various spaces, such as offices, restaurants, sports centres, and public areas.
C Linear
Ralph Lauren, Singapore
eightsixthree Architects

Frequently Asked Questions

The Alüm™ C-Linear Ceiling System is a modern linear aluminium ceiling solution that uses a concealed C carrier suspension system for a sleek, seamless ceiling design in commercial and public interiors. It combines contemporary aesthetics with functional performance.

C-Linear panels are made from durable 1100 aluminium alloy and come in panel widths ranging from 50 mm to 300 mm with thickness options between 0.35 mm and 0.70 mm. Finishes include powder coating, PVDF paint and veneer print for design flexibility.

Yes. The C-Linear system supports customisable panel lengths and configurations, allowing designers to adapt the layout to suit project geometry and aesthetic goals while maintaining a clean, linear ceiling look.

The system is tested to ISO 354 sound absorption standards, showing how it performs in reducing reverberation when used with appropriate backing materials. This makes it suitable for spaces that require enhanced acoustic comfort alongside architectural style.

Yes. The C-Linear system holds antibacterial certification (JIS Z 28001) and meets fire safety standard EN 13501-1 Class B s1, d0 for interior applications. Additionally, the aluminium is eco-friendly and fully recyclable, supporting sustainable building practices.
