H Linear

Alüm™ H Linear ceiling system utilizes a concealed suspension system with specialized H carriers, offering enhanced stability and a compressed structure compared to the Alüm™ C Linear panels. With sleek lines and customizable panel widths (200mm, 300mm) and thicknesses (0.75mm–1.10mm), this ceiling system is ideal for versatile applications. The aluminium ceiling panels are available in various perforation patterns and premium finishes, including powder coating, PVDF paint, and veneer prints. Featuring certifications for antibacterial performance (JIS Z 28001) and fire safety (EN 13501-1 Class B s1, d0), this system combines durability, aesthetics, and functional flexibility.

Specifications

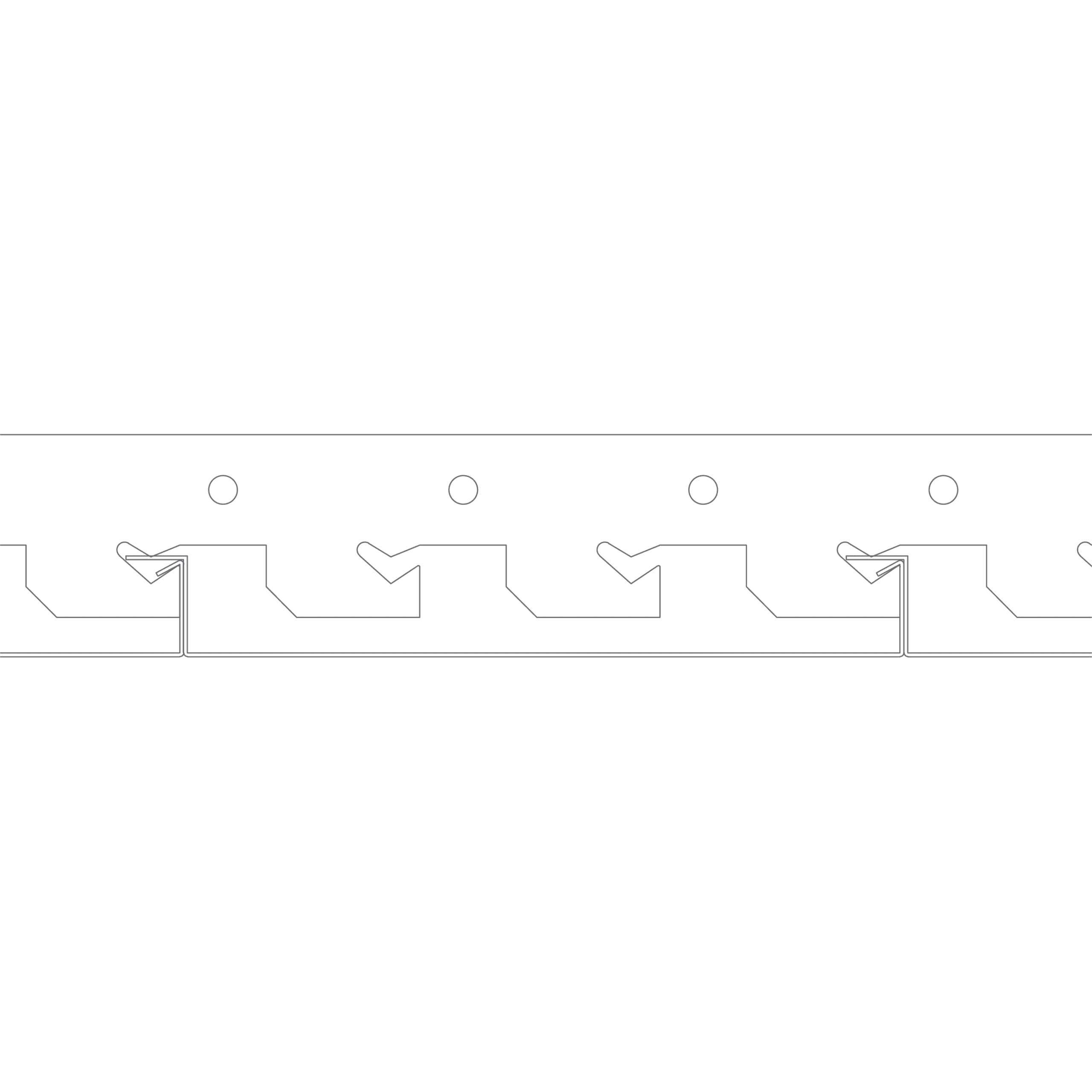

Technical Drawing

Panels are suspended using an H-type concealed system that enhances stability and seamless alignment. This design ensures easy installation, robust performance, and clean visual lines, making it suitable for diverse architectural needs.

Sunlight casts geometric shadows on a modern staircase with textured steps and smooth railings, creating a minimalist and abstract pattern with soft yellow lighting on the wall.

Sound Absorption Coefficient

Alüm™ is tested to ISO 354 Standards, which is the measurement of sound absorption in a reverberation room. The difference in the reverberation times is a measure of the amount of absorption in the room.

Close-up of green leaves and a small red flower next to two black, metal objects—one with a diamond mesh pattern and one with small circular holes—on a white surface.

Eco-friendly

Gray circular logo with three leaves in the center, surrounded by the text U.S. Green Building Council. A banner across the bottom reads LEED Certified, and USGBC is at the base.

We prioritize sustainability and eco-friendliness in our design and manufacturing processes. Made from eco-friendly recyclable materials, these products reduce environmental impact by minimizing waste and promoting long-lasting performance.

Projects

Our projects encompass a broad spectrum, spanning from new building constructions to renovations. These projects involve various spaces, such as offices, restaurants, sports centres, and public areas.
H Linear
Bukit Canberra ActiveSG, Singapore
DP Architects

Frequently Asked Questions

The Alüm™ H-Linear Ceiling System is a modern aluminium linear ceiling solution that uses a concealed suspension system with specialised H carriers, offering enhanced stability and a flatter profile compared to some other linear ceiling types.

H-Linear panels are made from durable 1100 aluminium alloy and come in premium finishes such as powder coating, PVDF paint, and veneer prints, giving designers flexibility to match aesthetic and functional needs.

The system supports panel widths of 200 mm and 300 mm with thicknesses from 0.75 mm to 1.10 mm. Customisable perforation patterns help tailor acoustic and visual performance to project goals.

Alüm™ H-Linear ceilings are tested to ISO 354 standards for sound absorption, meaning when configured with appropriate acoustic backing, they can help reduce reverberation and improve acoustic comfort in busy spaces like offices and public areas.

Yes. The H-Linear system carries certifications for antibacterial performance (JIS Z 28001) and fire safety (EN 13501-1 Class B s1 d0), and is made from eco-friendly recyclable aluminium, supporting sustainability and safety in architectural projects.
