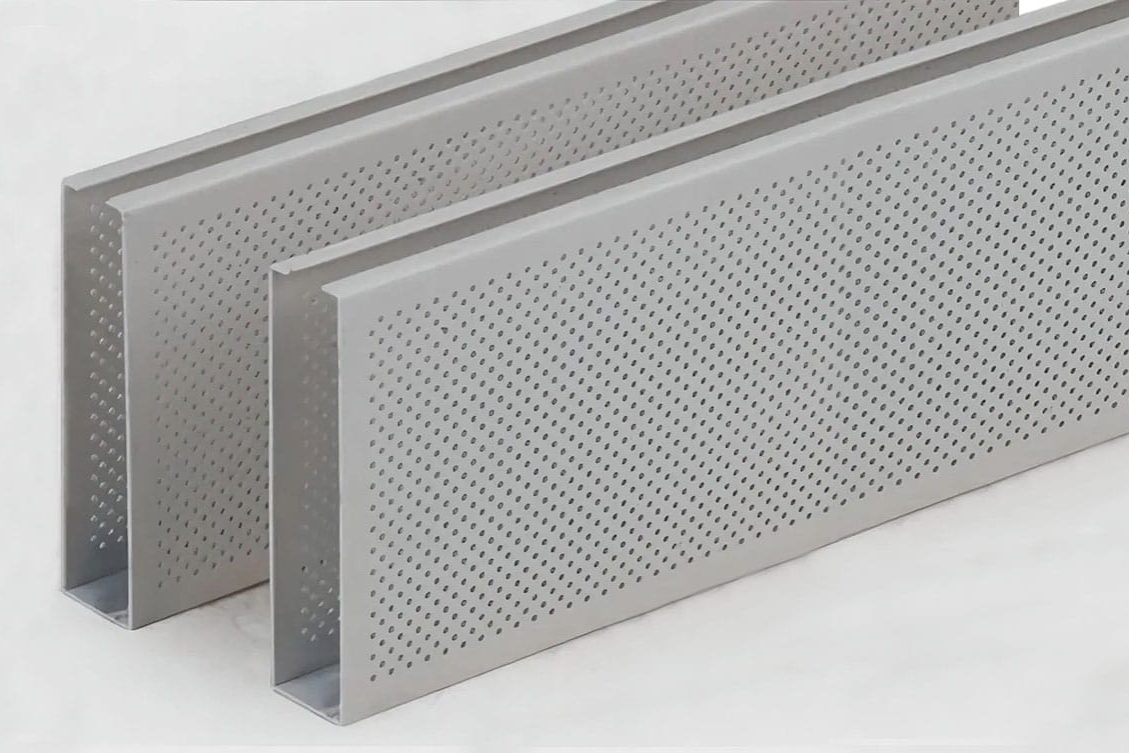

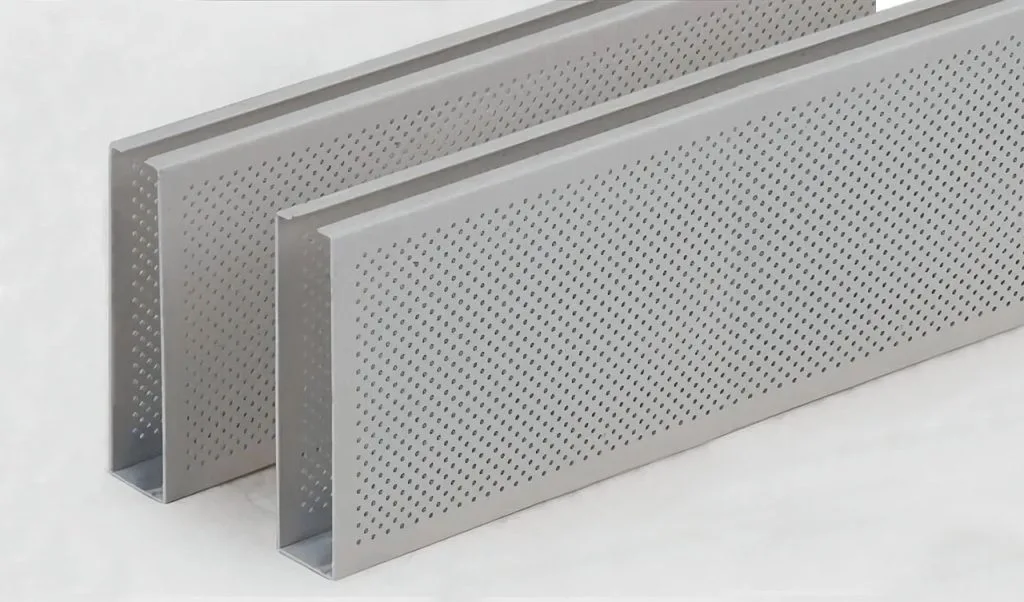

Perforated Aluminium Baffle

Alüm™ Perforated Baffle 501 is an acoustic ceiling system designed with perforated baffles and internal insulation to enhance sound absorption. Constructed from durable 1100 Aluminium Alloy, the system features adjustable widths (25mm to 100mm), heights (50mm to 300mm), and thicknesses (0.8mm to 1.0mm). Available in various finishes like powder coating, PVDF paint, and veneer prints, it accommodates customizable spacing and versatile design options. With antibacterial certification (JIS Z 28001) and fire safety compliance (EN 13501-1 Class B s1, d0), ths aluminium baffle system is ideal for modern architectural spaces, providing both functionality and visual appeal.

Specifications

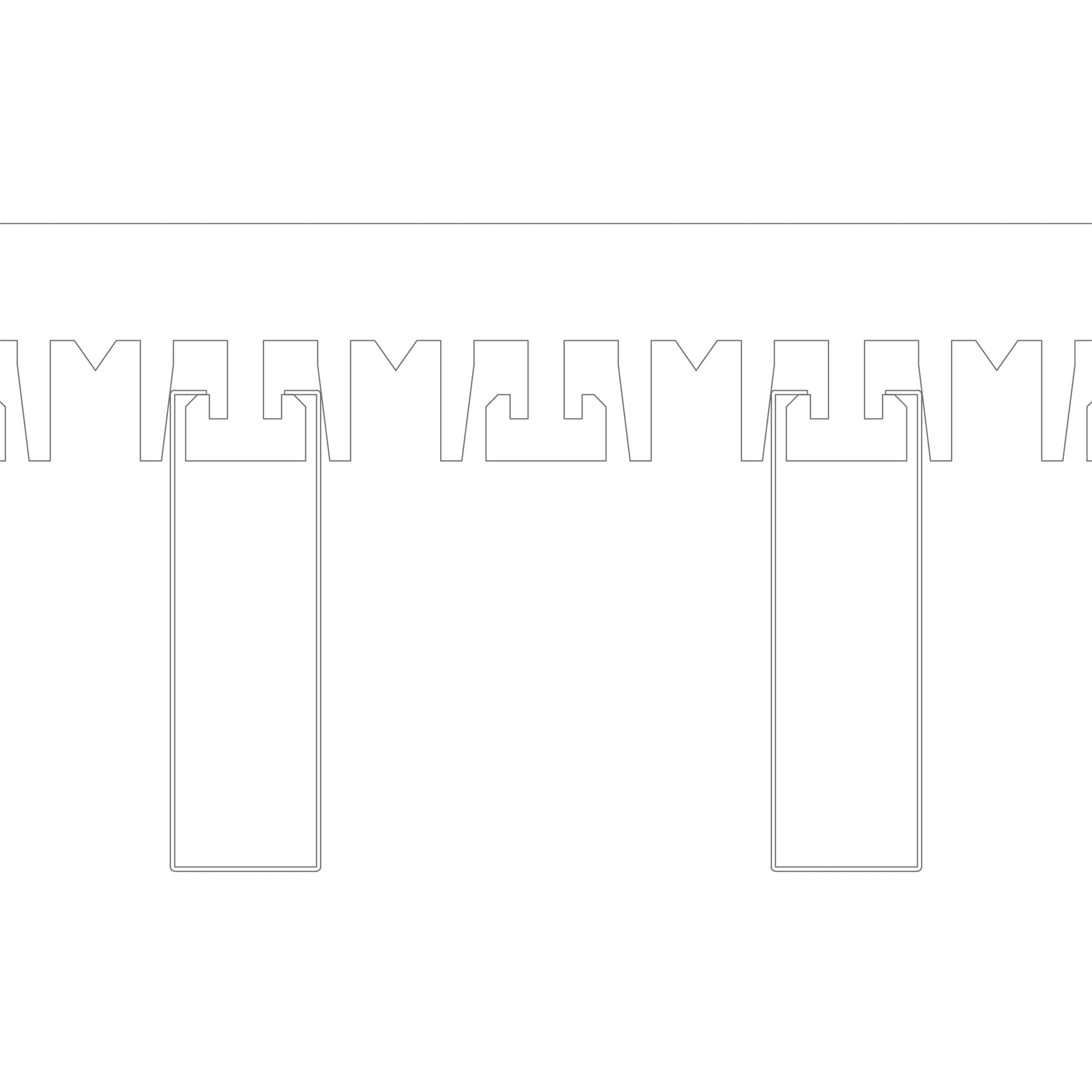

Technical Drawing

Baffles are suspended using an open-space system, ensuring easy alignment and customizable spacing. The design allows for efficient installation, acoustic optimization, and access to integrated services like lighting or ventilation.

Sunlight casts geometric shadows on a modern staircase with textured steps and smooth railings, creating a minimalist and abstract pattern with soft yellow lighting on the wall.

Sound Absorption Coefficient

Alüm™ is tested to ISO 354 Standards, which is the measurement of sound absorption in a reverberation room. The difference in the reverberation times is a measure of the amount of absorption in the room.

Close-up of green leaves and a small red flower next to two black, metal objects—one with a diamond mesh pattern and one with small circular holes—on a white surface.

Eco-friendly

Gray circular logo with three leaves in the center, surrounded by the text U.S. Green Building Council. A banner across the bottom reads LEED Certified, and USGBC is at the base.

We prioritize sustainability and eco-friendliness in our design and manufacturing processes. Made from eco-friendly recyclable materials, these products reduce environmental impact by minimizing waste and promoting long-lasting performance.

Projects

Our projects encompass a broad spectrum, spanning from new building constructions to renovations. These projects involve various spaces, such as offices, restaurants, sports centres, and public areas.
Perforated Baffle 501

Frequently Asked Questions

Alüm™ Perforated Baffle is a suspended aluminium baffle ceiling system engineered for data center environments, featuring precision perforations that support airflow management, acoustic control, and clean integration above critical IT infrastructure.

The perforated design allows unrestricted vertical air movement, helping hot air rise and return efficiently to cooling systems while avoiding airflow obstruction, which is essential for maintaining stable temperatures in high-density server environments.

Yes, when paired with an acoustic backing or insulation, perforated baffles help absorb and diffuse sound, reducing ambient noise from servers and cooling equipment while maintaining an open ceiling configuration suitable for technical spaces.

Aluminium baffles are lightweight, non-combustible, corrosion-resistant, and easy to maintain, making them ideal for data centers where fire safety, durability, accessibility, and long-term performance are critical requirements.

Absolutely — Alüm™ perforated baffle systems are designed to meet the demands of mission-critical environments, offering fire-rated aluminium construction, modular access for maintenance, and compatibility with modern data center design standards focused on safety, efficiency, and scalability.
